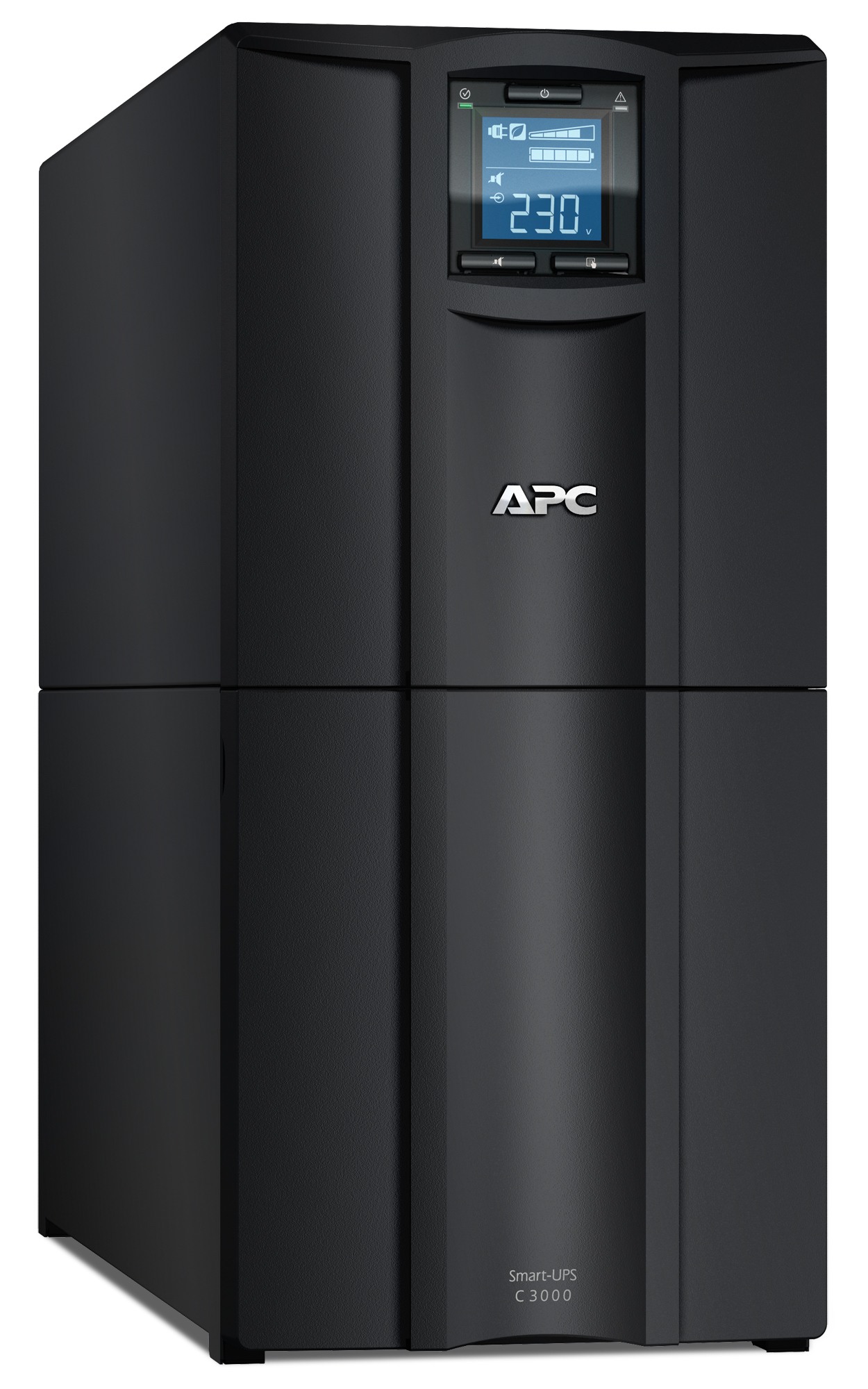

APC Smart-UPS C 3000VA LCD 230V

APC Smart-UPS : RackModel & Tower Model
APC Smart UPS SMC series ( รุ่นเอสเอ็มซี )
Technology  Line Interactive UPS  ( ระบบไฟฟ้า )
Output ( ไฟขาออก)
Output Voltage Distortion : Less than 5% at full load
Output Frequency (sync to mains)  : 50 Hz
Output Connections : (8) IEC 320 C13 (Battery Backup), (1) IEC 320 C19 (Battery Backup)
Max Configurable Power (Watts) : 2.1 KWatts / 3.0 kVA
Output power capacity : 2.1 KWatts / 3.0 kVA   (กำลังไฟ )
Topology : Line Interactive  ( ระบบไฟ )
Waveform type : Sine wave  ( คลื่นไฟฟ้า )
Input ( ไฟขาเข้า )
Input frequency : 47 - 63 Hz
Input voltage adjustable range for mains operation : 170 - 300 V
Input voltage range for main operations : 180 - 287 V
Input Breaker Capacity : 0 A
Other Input Voltages : 220, 240
Input Connections : IEC-320 C20
Battery ( แบตเตอรี่ )
Typical recharge time : 3 hour(s)  (ระยะเวลาการชาร์ท )
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Replacement Battery : APCRBC150 ( แบตเตอรี่ อาร์ซีบี 150 )
RBC Quantity : 1  ( จำนวน )
Battery Volt-Amp-Hour Capacity : 552
Communication ( การสื่อสาร )
Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays
Control panel : Multi-function LCD status and control console ( การควบคุม )
Emergency Power Off (EPO) : -
Interface Port(s) : USB  ( ยูเอสบี )
Runtime
Output power capacity : 2.1 KWatts / 3.0 kVA
Surge Protection and Filtering
Surge energy rating: 300 Joules
Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through
: zero clamping response time : meets UL 1449
Physical ( ขนาดของสินค้า )
Color : Black ( สีดำ )
Maximum Depth : 544 mm , 54.4 CM
Maximum Height : 435 mm , 43.5 CM
Net Weight : 43.0 KG  ( น้ำหนักสุทธของสินค้า )
Environmental  ( สิ่งแวดล้อม )
Audible noise at 1 meter from surface of unit : 45.0 dBA
Operating Temperature : 0 - 40 ?C
Operating Elevation : 0-3000 meters
Operating Relative Humidity : 0 - 95 %
Storage Temperature : -15 - 45 ?C
Storage Elevation : 0-15000 meters
Storage Relative Humidity : 0 - 95 %
Online thermal dissipation : 135.0 BTU/hr
Conformance
Approvals : C-tick, CE, GOST, SABS, VDE ( มาตราฐานของระบบ )
PART NUMBER SMC3000I
Standard warranty : 3 Year Warranty Onsite Swap by APC Thailand

Technical Specifications



Output

Output power capacity
2.1kWatts / 3.0kVA
Max Configurable Power (Watts)
2.1kWatts / 3.0kVA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
50 Hz
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(8) IEC 320 C13 (Battery Backup)
(1) IEC 320 C19 (Battery Backup)

Input

Nominal Input Voltage
230V
Input frequency
47 - 63 Hz
Input Connections
IEC-320 C20
Input voltage range for main operations
180 - 287V
Input voltage adjustable range for mains operation
170 - 300V
Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement Battery
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Volt-Amp-Hour Capacity
552

Communications & Management

Interface Port(s)
USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
--

Surge Protection and Filtering

Surge energy rating
300Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height
435MM, 43.5CM
Maximum Width
197MM, 19.7CM
Maximum Depth
544MM, 54.4CM
Net Weight
43.0KG
Shipping weight
51.0KG
Shipping Height
762MM, 76.2CM
Shipping Width
381MM, 38.1CM
Shipping Depth
699MM, 69.9CM
Color
Black
Units per Pallet
24.0

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
45.0dBA
Online thermal dissipation
135.0BTU/hr

Conformance

Approvals
C-tick, CE, GOST, SABS, VDE
Standard warranty
2 years repair or replace

Sustainable Offer Status

RoHS
Compliant
REACH
REACH: Contains No SVHCs
