รายละเอียดสินค้า |

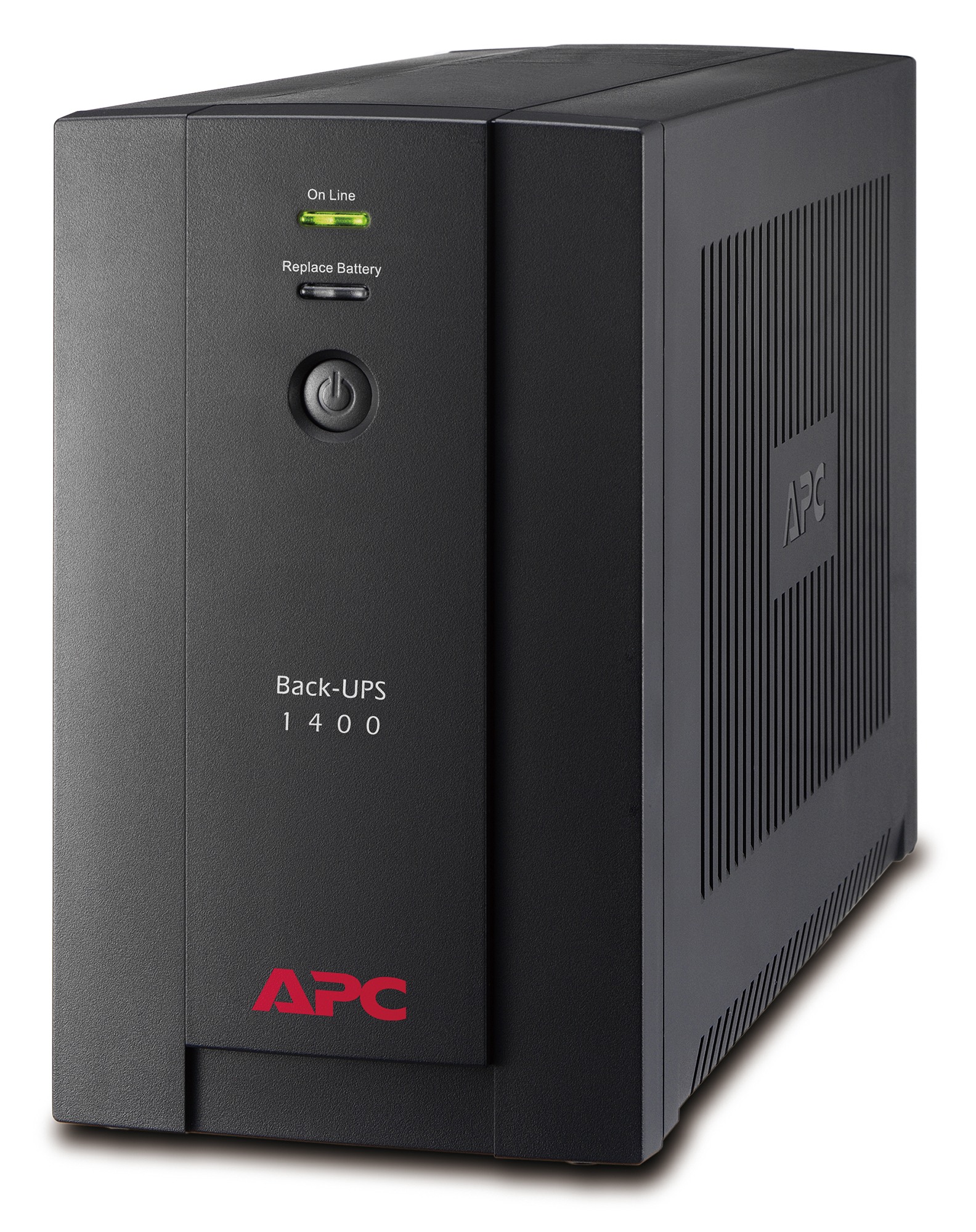

APC Back-UPS 1400VA, 230V, AVR, Universal and IEC SocketsAPC Back UPS : Tower ModelAPC Back-UPS 1400VA, 230V, AVR
• Output Power Capacity 700 Watts / 1400 VA
• Max Configurable Power 700 Watts / 1400 VA
• Nominal Output /InputVoltage 230V
• Output Frequency (sync to mains) 50/60 Hz +/-1 Hz
• Topology Line Interactive ( ระบบไฟ )
• Waveform Type Stepped approximation to a sinewave

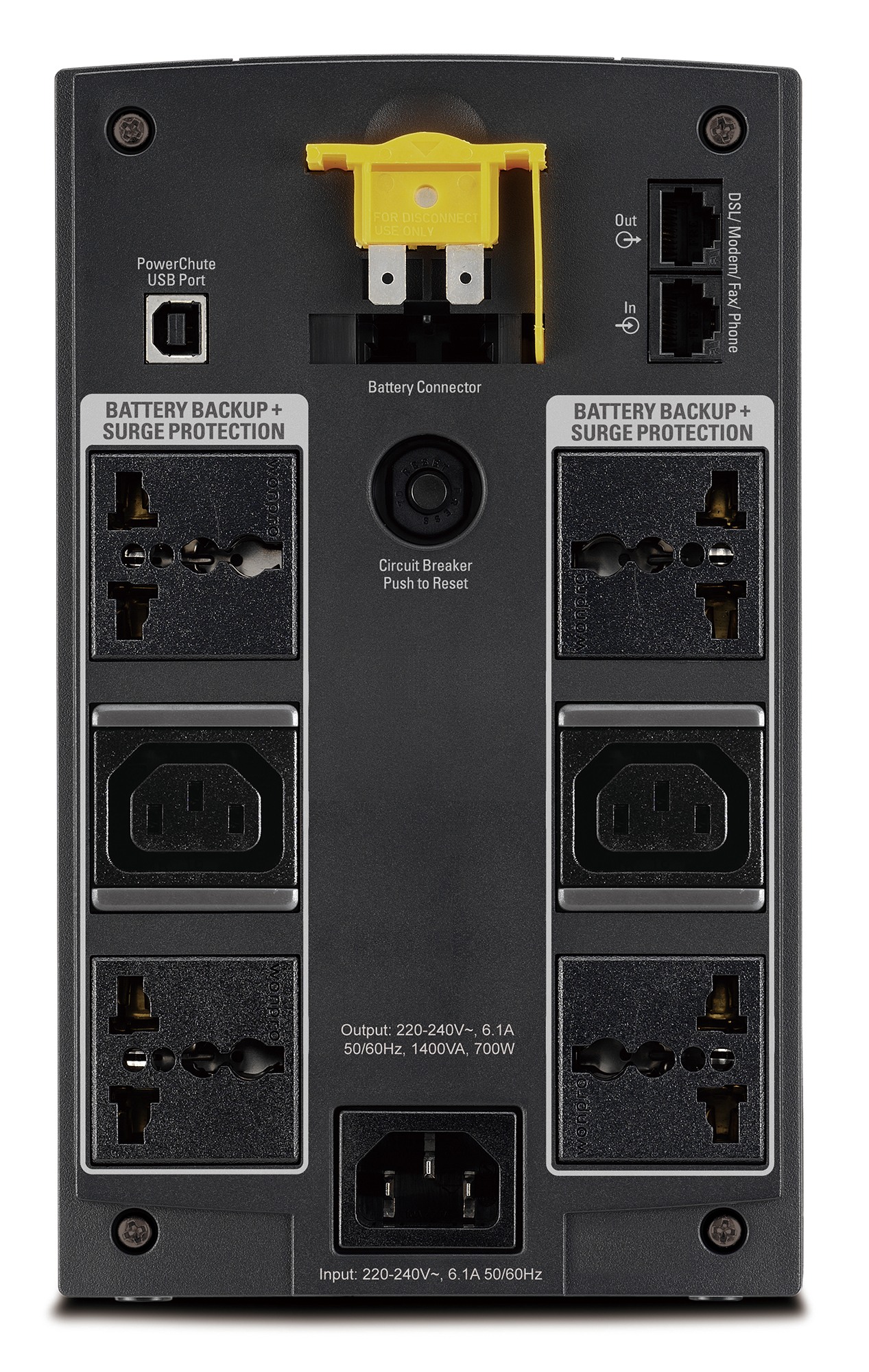

• Output Connections (2) IEC 320 C13 (Battery Backup)
IEC 320 C13 (4) Universal Receptacle (Battery Backup)
• Nominal Input Voltage 230V
• Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections IEC-320 C14 NEMA 5-15P
• Cord Length 1.22 meters ( ความยาวสายไฟ )
• Input voltage range for main operations 150 - 280V
• Maximum Input Current 6A ( แอมป์ )
• Input Breaker Capacity 10 A ( แอมป์ )
• Type of Input Protection Required 3-pole breaker
• Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
เสียงและสัญญาณไฟเตือนแสดงสถานะ ไฟ LED แสดงสถานะ 1 ดวง
• Included Battery Modules 1
• Typical recharge time 8 hour(s) ( ระยะเวลาการชาร์ทไฟ 8 ชั่วโมง )
• Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators
• Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Surge Protection and Filtering Surge energy rating 273 Joules
• Data Line Protection RJ-11 Modem/Fax protection
• Dims ( ขนาด ) : Height 215.00 x Width 130.00 x Depth 336.00 mm
• Net Weight (น้ำหนัก ) 12.00 Kgs ( Shipping Weight 12.94 Kgs )
• Includes: Qty 1 - Detachable 1.8 m IEC power cord,
Qty 1 - Detachable 2.0 m NEMA 5-15P to IEC C13 power cord, User Manual
• Warranty: 2 years ( P/N bx1400u-ms ) รับประกัน 2 ปี ยกเข้าศูนย์บริการใกล้บ้าน
แนะนำสินค้าใกล้เคียง
APC BX700U-MS, APC BX950U-MS OutputOutput power capacity
700Watts / 1.4kVA
Max Configurable Power (Watts)
700Watts / 1.4kVA
Nominal Output Voltage
230V
Output Frequency (sync to mains)
50/60 Hz +/-1 Hz
Output Frequency (not synced)
50/60 Hz +/-1 Hz
Topology
Line Interactive
Waveform type
Stepped approximation to a sinewave
Output Connections
(2) IEC 320 C13 (Battery Backup)
Transfer Time
8ms typical : 10 ms maximum
InputNominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14, NEMA 5-15P
Cord Length
1.22meters
Input voltage range for main operations
150 - 280 V
Number of Power Cords
2
Type of Input Protection Required
3-pole breaker
Maximum Input Current
6.0A
Input Power Factor at Full Load
0.5
Batteries & RuntimeBattery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
1
Typical recharge time
8hour(s)
Replacement Battery
Expected Battery Life (years)
2 - 5
Battery Volt-Amp-Hour Capacity
165
Runtime
Efficiency
Communications & ManagementControl panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and FilteringSurge energy rating
273Joules
Data Line Protection
RJ-11 Modem/Fax protection
PhysicalMaximum Height
215MM, 21.5CM
Maximum Width
130MM, 13.0CM
Maximum Depth
336MM, 33.6CM
Net Weight
12.0KG
Shipping weight
12.94KG
Shipping Height
295MM, 29.5CM
Shipping Width
245MM, 24.5CM
Shipping Depth
440MM, 44.0CM
Color
Black
EnvironmentalOperating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (non-condensing) %
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 (non-condensing) %
Storage Elevation
0-9000meters
Audible noise at 1 meter from surface of unit
45.0dBA
ConformanceEquipment protection policy
No EPP for ASEAN
Standard warranty
2 years repair or replace
Sustainable Offer StatusRoHS
Compliant
REACH
REACH: Contains No SVHCs
![]() ![]() ![]() |
