Saramonic Blink 500 Specs

System
Wireless Transmission Digital
Number of RF Channels 18
Transmitters 1 x Clip-On Transitter with Microphone
Diversity Non-Diversity
RF Frequency Range 2400 to 2483.5 MHz
RF Bandwidth Up to 83.5 MHz
Maximum Operating Range 164' / 50 m (Line of Sight)
98.4' / 30 m (with Obstruction)
# Of Simultaneous Systems 18 Maximum
Digital Resolution 48 kHz / 24-Bit
Latency 12 ms
Encryption None
Modulation GFSK
Receiver
Form Factor Beltpack / Camera-Mount / Portable
Mounting Options Belt Clip, Shoe-Mount (with Included Hardware)
Antenna 1 x 1/4 Wave Wire, Fixed
Audio Channels 2
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output
Audio Output Level 5 dB
Phantom Power Protection None
Frequency Response 20 Hz to 16 kHz
USB Connectivity 1 x USB Type-C (Bus Power, Charging)
Power Requirements Battery or USB Bus Power
Battery Type 1 x Built-In Rechargeable (Included, Not Replaceable)
Battery Capacity 400 mAh
Battery Charging Time 2.5 Hours
Battery Life Up to 5 Hours
Indicators 1 x LED (Battery Status, Power, Recharging, Sync)
Housing Material ABS, Plastic
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 122°F / -20 to 50°C
Dimensions 2.4 x 1.3 x 0.6" / 6.2 x 3.3 x 1.5 cm
Weight 1.1 oz / 31 g

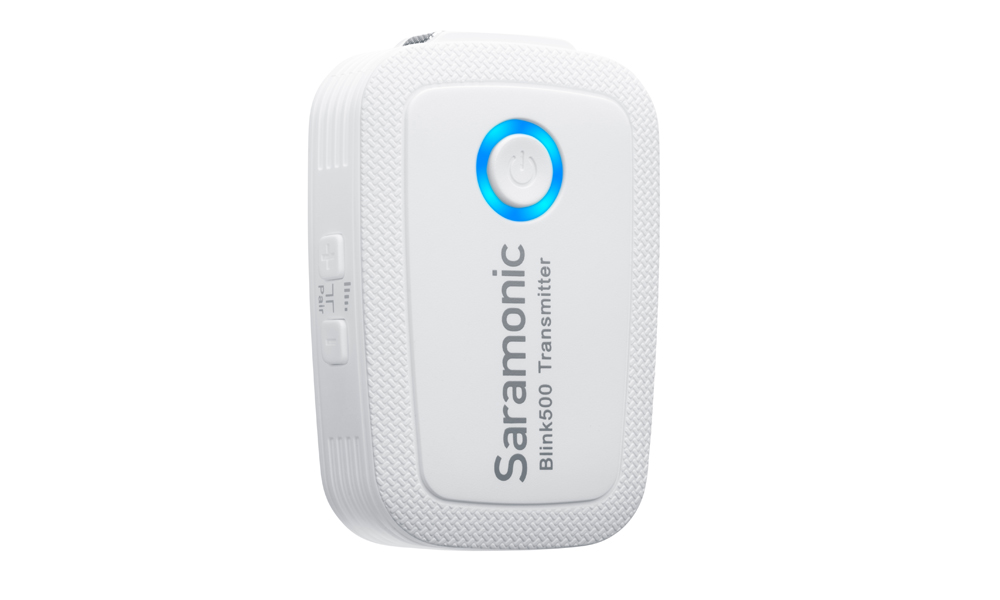

Transmitter
Form Factor Clip-On Transmitter with Microphone
RF Output Power 10 mW
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input
Plug-In Power 1 V
Pad None
Muting None
Audio Input Level -42 to -30 dBV (at 0 dB Gain)
Gain Range +11 to +25 dB (7 dB Steps)
Signal Processing None
Frequency Response 20 Hz to 16 kHz
Sync Mode IR
Antenna 1 x 1/4 Wave Wire, Fixed
Power Requirements Battery or USB Bus Power
Battery Type 1 x Built-In Rechargeable (Included, Not Replaceable)
Battery Capacity 400 mAh
Battery Charging Time 1.5 to 2.5 Hours
Battery Life Up to 5 Hours
USB Connectivity 1 x USB Type-C (Bus Power, Charging)
Indicators 4 x LED (Audio Level, Power)
1 x LED (Battery Status)
1 x LED (Recharging)
Housing Material ABS, Plastic
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 122°F / -20 to 50°C
Dimensions 2.5 x 1.7 x 0.7" / 6.3 x 4.3 x 1.7 cm
Weight 1.2 oz / 34 g

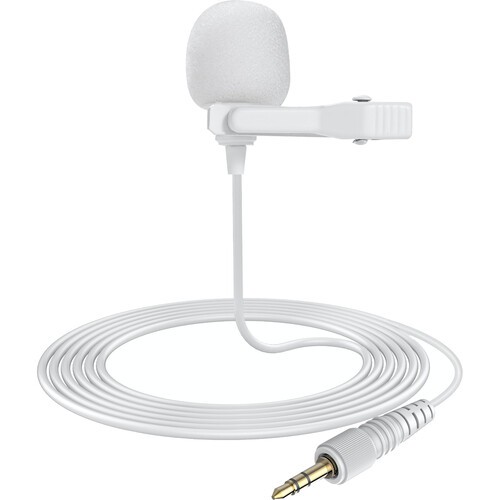

Lavalier Microphone Specs
Form Factor Lavalier
Sound Field Mono
Operating Principle Pressure Operated
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 50 Hz to 18 kHz
Equivalent Noise Level 58 dB
Maximum SPL 110 dB SPL
Sensitivity -30 dB
Output Connector 1 x 1/8" / 3.5 mm TRS Male Unbalanced
Cable Length 4' / 1.2 m
Operating Voltage 1 V
Built-In Microphone Specifications
Form Factor Integrated
Sound Field Mono
Operating Principle Pressure Operated
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 50 Hz to 18 kHz
Equivalent Noise Level 58 dB
Maximum SPL 120 dB SPL
Sensitivity -42 dB
