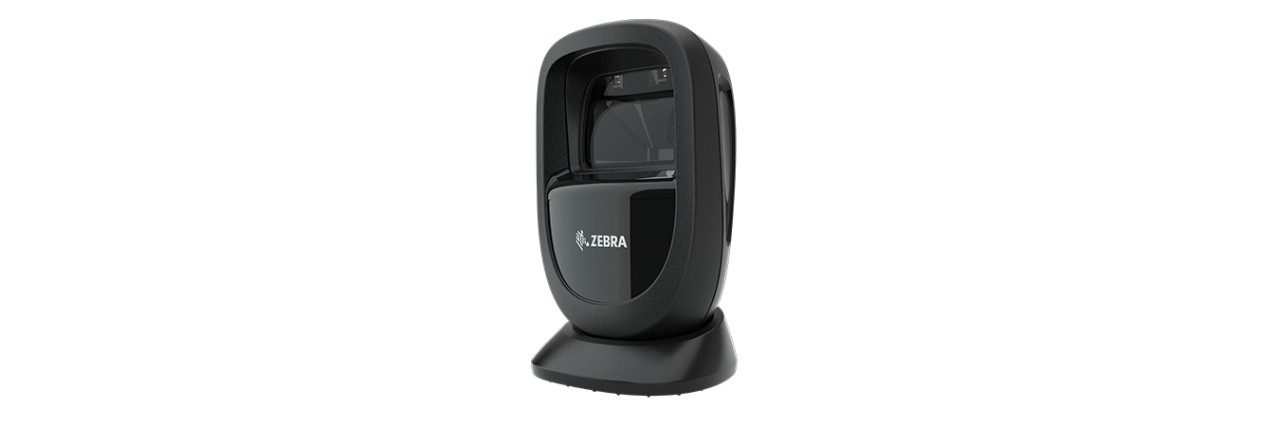

Coming Soon !!! ZEBRA DS9308 HANDS-FREE IMAGER รับประกัน 1 ปี

INNOVATION-DRIVEN DESIGN AND PERFORMANCE

A Fit-everywhere Modern Design with a Near-Zero Footprint

The new design of the DS9300 Series is at home everywhere, from the trendiest boutique to a petroleum convenience store. With a near-zero footprint, there’s always room for the DS9300 Series, no matter how space-constrained your counters may be. And the 45° angle cable connector reduces the already tiny footprint, even when the scanner is tilted forward.

Scan It All — With Virtually No Exceptions

Quickly and easily capture 1D and 2D barcodes, including tiny, high density codes, codes printed on a label or displayed on a phone, DotCode and dotted DataMatrix codes through cellophane, as well as new invisible Digimarc codes. Zebra’s DS9300 Series’ state-of-the-art technology captures barcodes in virtually any condition, on any media.

The 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology work together to easily capture poorly printed, damaged, crinkled, faded, truncated and low contrast barcodes. The curved exit window helps minimize stray light, reducing reflections from barcodes printed on glossy paper or displayed on a screen that can blind the sensor.

Rapid-fire Can’t-miss Scanning

When it comes to ease of use, the DS9300 Series outshines the competition. With swipe speeds that are up to 50% faster than competitive scanners, the DS9300 Series can capture barcodes as fast as they are presented. And the largest field of view in this class eliminates the need to move items around to find the “sweet spot”.

Intelligent Adaptive Illumination

The LEDs dynamically adapt to the environment, automatically dimming when not in use and activated when a barcode is present. The LEDs are also recessed and virtually invisible, reducing eye annoyance.

Instantly Capture and Process Driver’s License Data

Use the information on a driver’s license to instantly verify age, populate loyalty and credit card applications and monitor returns to prevent fraud.

Eliminate Paper with Document Capture

With Intelligent Document Capture, the DS9300 Series can turn prescriptions, passports, checks and other A6 or smaller documents into clear and easy-to-read electronic images — the smart software automatically corrects lighting issues and more to ensure optimum document clarity. There’s no need to locate and scan documents on a separate scanner, enabling faster checkout and a better customer experience at the POS.

Automatically Deactivate Anti-theft Tags

Support for Checkpoint Electronic Article Surveillance (EAS) eliminates a step at the POS for faster checkout — a single pass in front of the DS9300 Series captures barcodes and deactivates tags.

Capture Multiple Barcodes with One Press of the Scan Trigger

With Multi-Code Data Formatting (MDF), the DS9300 Series can capture multiple barcodes with a single scan and transmit only the barcodes you need, in the order your application expects.

Single Out One Barcode From Many

With Zebra’s Preferred Symbol, the DS9300 Series can capture and output only the preferred barcode, so associates no longer have to waste time physically covering nearby barcodes before scanning.

Ensure Feedback is Always Visible and Audible

You can adjust the volume, frequency and duration of the beeper to ensure your associates can hear the tone that signals a successful scan. And the bright green “good decode” LED is visible no matter where your associates are standing — in front of or behind the scanner.

MAXIMUM DURABILITY, MAXIMUM RELIABILITY

Drops, Dust and Spills — No Problem

The DS9300 Series is built to handle 5 ft./1.5 m drops to concrete and 1,000 consecutive 1.5 ft./0.5 m tumbles, ready to survive the knocks and bumps that can happen in the real-world. And spills and dust won’t slow the DS9300 Series down. Thanks to IP52 sealing and a patent-pending opto-mechanical layout that includes a concealed beeper hole with elevated circuitry and cable connector, even the base is spill proof.

A Multi-Position Base That Won’t Wear Out

The flexible ratcheting base offers four positions, from 15° back to 45° forward. This frictionless system won’t wear out like those used in competitive devices, ensuring convenient positioning for maximum flexibility, every day the DS9300 Series is in service.

EASY TO DEPLOY, EASY TO MANAGE

Backwards Compatibility with DS9208 and Power Supplies

Upgrade to the DS9300 Series to get all the advantages of today’s advanced scanning technologies in your business — cost-effectively.

Plug-and-Play Instant Deployment

Get up and running right out of the box with optimized default configuration settings, auto-host detect cables that instantly connect to all popular interfaces and keyboard support for nearly 100 languages.

Multiple Mounting Options for a Wide Variety of Applications

The “slipper” style multi-mount accessory keeps the scanner in place on a table or wall without restricting the tilt range or the ability to remove the scanner for handheld use — ideal for price checking, pick and pack and more. The locking-mount accessory is ideal for applications where the scanner should not be removed, for example, in customer facing applications such as self checkout and mobile loyalty.

DataCapture DNA Delivers Unsurpassed Value

Only from Zebra, this unique collection of value-add tools makes it easier to deploy, update, troubleshoot, manage and develop applications for your DS9300 Series scanners. For example, 123Scan creates a single barcode to initially stage or update scanners. Develop and deploy applications faster and easier than ever with the Scanner SDK. ScanSpeed Analytics makes it easy to spot and correct issues before they impact performance and worker productivity. And you can remotely manage your scanners through Scanner Management Service (SMS) or Windows Management Instrumentation (WMI), eliminating the time and cost for onsite visits.

Physical Characteristics

Performance Characteristics

Imaging Characteristics

User Environment

Regulatory

Accessories

Symbol Decode Capability

Decode Ranges (Typical)*

Warranty

Recommended Services

DataCapture DNA
